Combination Migration Cell with Stainless Steel or Glass Fixing Plate and PVDF Central Ring

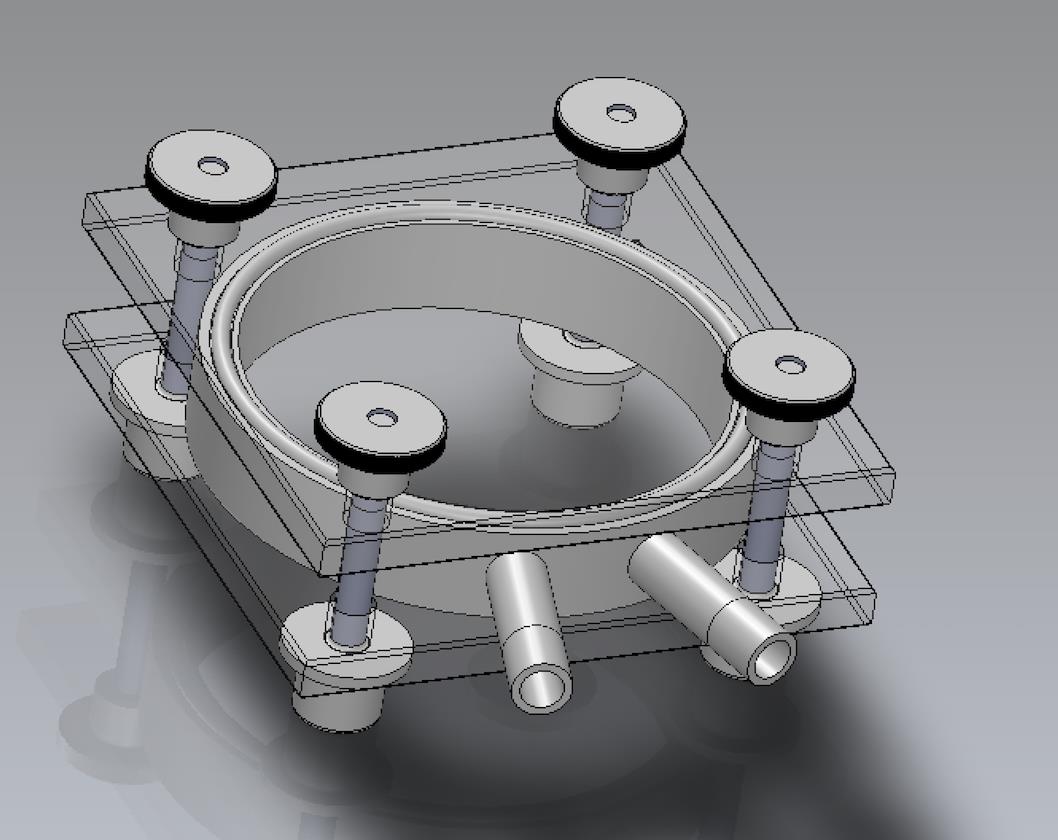

Sieg-Mi-Flex kombi-Migrationszelle

PVDF Central Ring for migration simulations with subsequent metal analysis
Pressure-tight up to 9 bar with Stainless steel Fixing Plates
Pressure-tight up to 1 bar with Glass Fixing Plates
Temperature resistance of the PVDF Central Ring -15 °C to 180 °C
For subsequent metal analysis, the Sieg-Mi-Flex cell with PVDF Central Ring must be covered with two test pieces and the cells must stand upright!

Available Central Rings:

Item No.:

Nominal diameter:

Surface*:

Filling volume**:

250-0277600

DN120

1,0 / 2,0 dm²

200 ml

* Approx. surface with 1 test specimen/with 2 test specimens

** Approx. filling volume of the central ring

PVDF Central Ring for the Migration Cell System-Siegwerk „Sieg-Mi-Flex“ consisting of:

Sieg-Mi-Flex kombi-Migrationszelle

1 x PVDF middle ring DN120 (ring height: 20 mm without seal!) with inlet and outlet nozzles all made of PVDF with GL14 thread
2 x sealing cap GL14 (PPS, black + PTFE/silicone seal)
2 x O-ring FEP/silicone DN120 fits in groove of middle ring (top/bottom)

Stainless steel Fixing Plate Set for the Siegwerk „Sieg-Mi-Flex“ Migration Cell System consisting of:

1 x Stainless steel (V4A 1.4571) Upper part Plate with drill holes, polished inside, 140 x 140 mm
1 x Stainless steel (V4A 1.4571) Bottom part Plate with drill holes, polished inside, 140 x 140 mm
4 x stainless steel knurled screws(M8)
4 x pin thread M8, stainless steel (VA 1.4571), Length: 66,5mm
4 x stainless steel “Sieg-Mi-Flex” washers
4 x PTFE feet, natural

Note: All Sieg-Mi-Flex Central Rings fit in the Fixing Plate Set!

Item No.: 250-0239899

Glass Fixing Plate Set for the Siegwerk „Sieg-Mi-Flex“ Migration Cell System consisting of:

Item No.: 250-0277594

Combination Migration Cell with Glass Fixing Plates and Stainless Steel Central Ring

Combination Migration Cell with Stainless Steel Fixing Plates and Glass Central Ring
